Yüksek Kontrast Ayırma Gücü Desenleri

We offer a wide range of test patterns for two and three dimensional resolution evaluation. As we do not depend on other companies and each pattern is developed and manufactured in-house, we can prepare all combination of shapes, layouts, templates and materials for you. Our cutting-edge technology allows us to obtain unmatched precision and resolution range in many types of materials.

We present here only our standard test patterns. If you need something else, please contact us.

Dental resolution patterns

Pro-Res Dent Intra
lead thickness: 0.05mm
resolution range: 4.0 - 8.0 LP/mm
number of groups: 7
bars per group: 3
size: 16x32mm

Pro-Res Dent OPG
lead thickness: 0.05mm
resolution range: 1.6 - 3.0 LP/mm
number of groups: 7
bars per group: 3
size: 17x31mm

Radiography resolution pattern
Pro-Res RF BarType 1
lead thickness: 0.05mm
resolution range: 0.6 - 5.0 LP/mm
number of groups: 20
bars per group: 3
size: 50x50mm
Pro-Res RF BarType 2
lead thickness: 0.1mm
resolution range: 0.5 - 5.0 LP/mm
number of groups: 21
bars per group: 5
size: 57x47mm
Pro-Res RF BarType 3
lead thickness: 0.05mm
resolution range: 0.5 - 14.3 LP/mm
number of groups: 30
bars per group: 5
size: 57x47mm
Pro-Res RF BarType 4
lead thickness: 0.1mm
resolution range: 1.0 - 4.86 LP/mm
number of groups: 16
bars per group: 5
size: 110x40mm

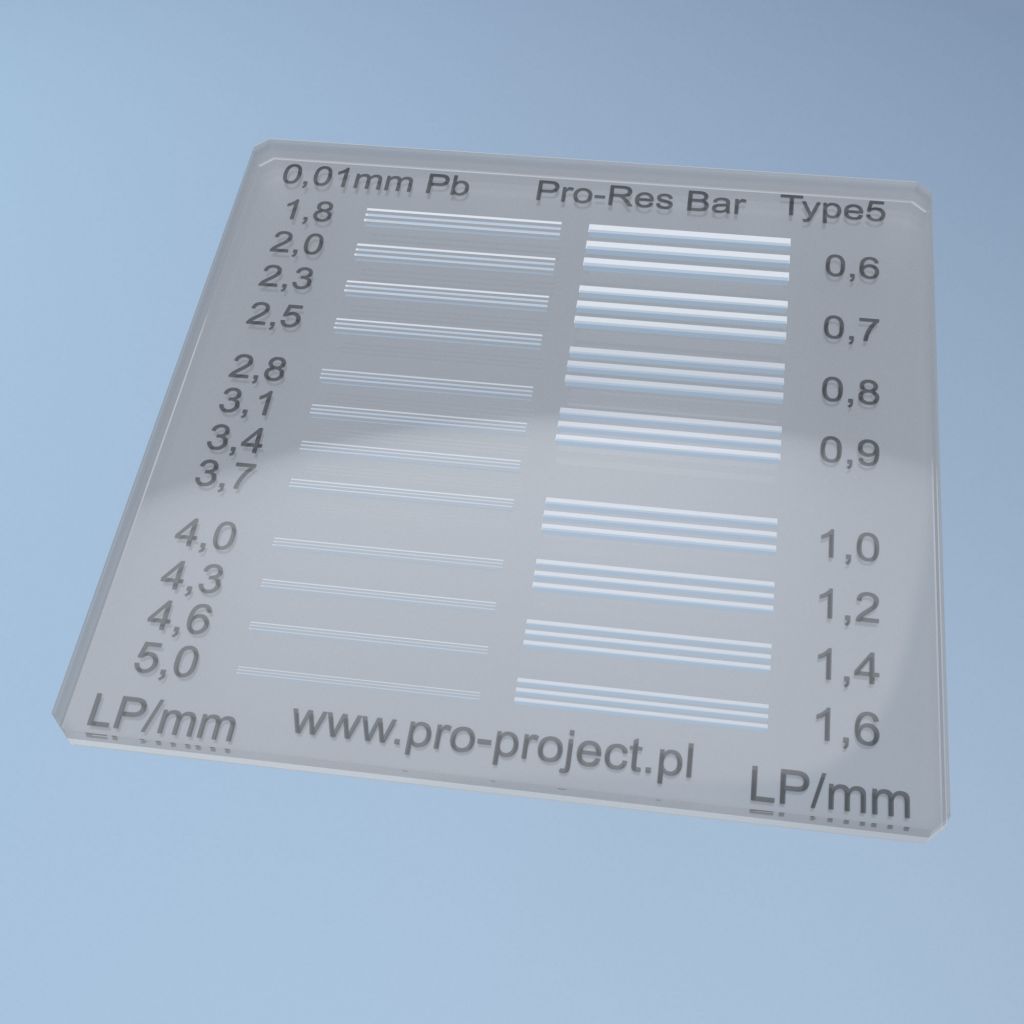

Pro-Res RF BarType5
lead thickness: 0.01mm
resolution range: 0.6 - 5.0 LP/mm
number of groups: 20
bars per group: 3
size: 50x50mm

Pro-Res RF BarType6
lead thickness: 0.05mm
resolution range: 0.5 - 5.0 LP/mm
number of groups: 21
bars per group: 5
size: 57x47mm


Pro-Res RF BarType7
lead thickness: 0.05mm
resolution range: 0.5 - 10.0 LP/mm
number of groups: 27
bars per group: 5
size: 57x47mm

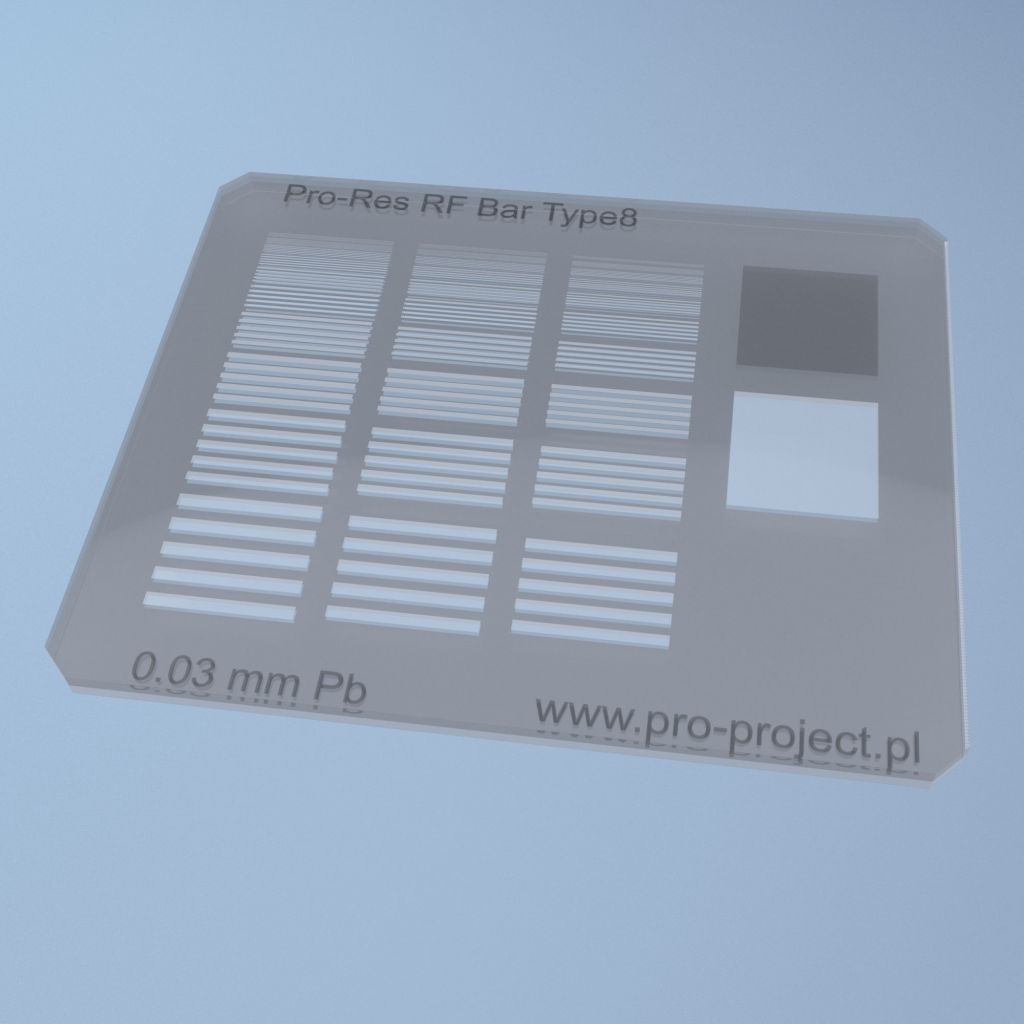

Pro-Res RF BarType8
lead thickness: 0.03mm
resolution range: 0.5 - 14.3 LP/mm
number of groups: 30
bars per group: 5
size: 57x47mm
Pro-Res RF BarType9
lead thickness: 0.03mm
resolution range: 0.5 - 20.0 LP/mm
number of groups: 33
bars per group: 5
size: 57x47mm
Pro-Res RF MeshType
standard wire meshes from 16 to 150
different sizes
different graduations
diamater: 20mm

Pro-Res RF ConeType1
resolution range: 1.0 - 10.0 LP/mm
lead thickness: Pb 0.05mm
number of groups: 1
size: 80x40mm

Pro-Res RF ConeType2
resolution range: 0.5 - 5.0 LP/mm
lead thickness: Pb 0.1mm
number of groups: 1
size: 150x50mm

Pro-Res RF MultiBarType1
resolution range: 0.6 - 3.4 LP/mm
lead thickness: Pb 0.1mm
number of groups: 2x15 groups
size: 50x50mm

Computed tomography resolution pattern
Pro-Res CT SandwichType
aluminium bars
different sheet sizes
standard resolution range: 1.0 - 30.0 LP/cm
Pro-Res CT HolesType
air thru holes
different hole diameters
standard diameters range: 0.4 - 1.75 mm

MRI resolution pattern
Pro-Res MRI HolesType
thru holes
different hole diameters
standard diameters range: 0.8 - 1.1 mm

Mammography resolution pattern
Pro-Res MAM ConeType
lead thickness: 0.03mm
resolution range: 1.5 - 20.0 LP/mm
size: 26x60mm

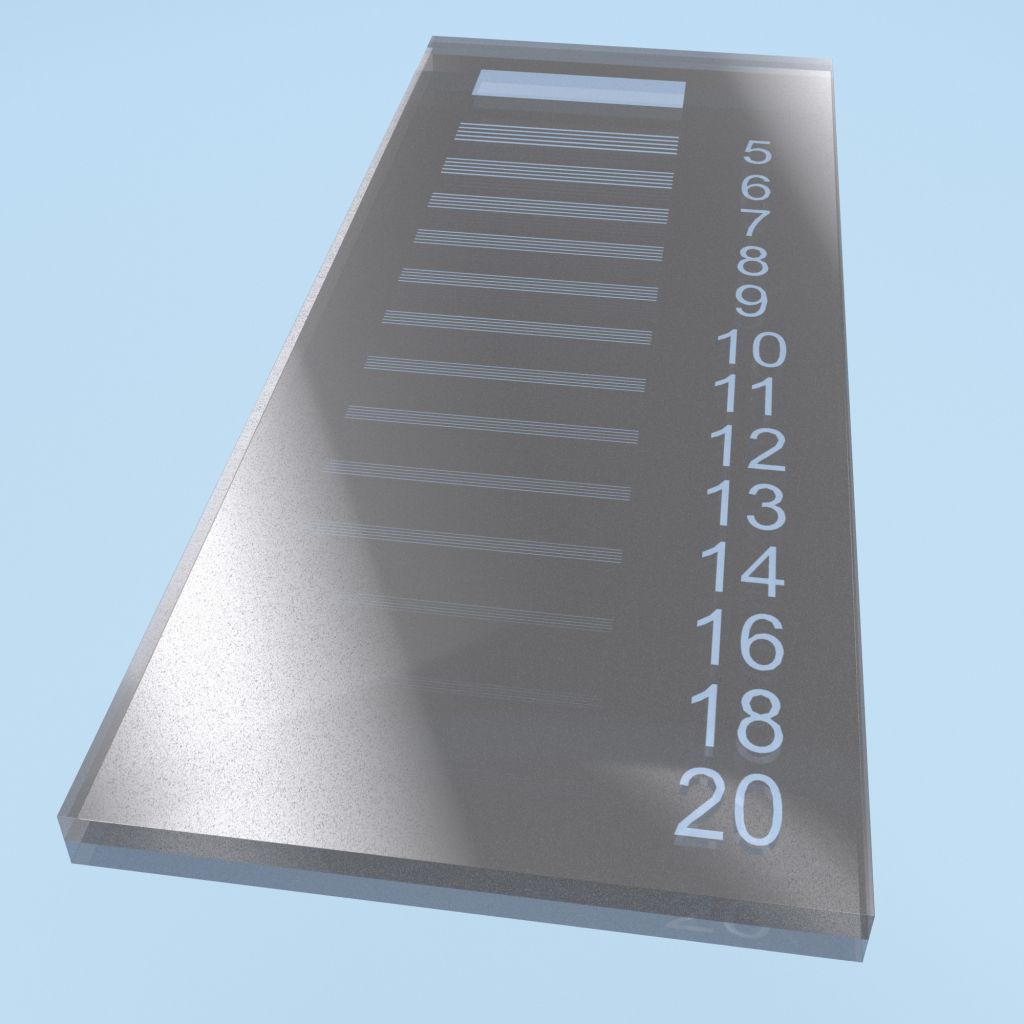

Pro-Res MAM BarType 1
lead thickness: 0.02mm
resolution range: 5.0 - 20.0 LP/mm
number of groups: 13
bars per group: 5
size: 10x25mm

Modulation Transfer Function measurement pattern
Pro-Res MTF 1
lead thickness: 0.05mm
resolution range: 0.25 - 10.0 LP/mm
number of groups: 22
resolutions: 0.25, 0.5, 0.6, 0.7, 0.85, 1.0, 1.2, 1.4, 1.7, 2.0, 2.4, 2.9, 3.5, 4.2, 5.0, 6.0, 7.0, 8.5, 10.0, 8.5, 7.0, 6.0 LP/mm
size: 71x44mm
