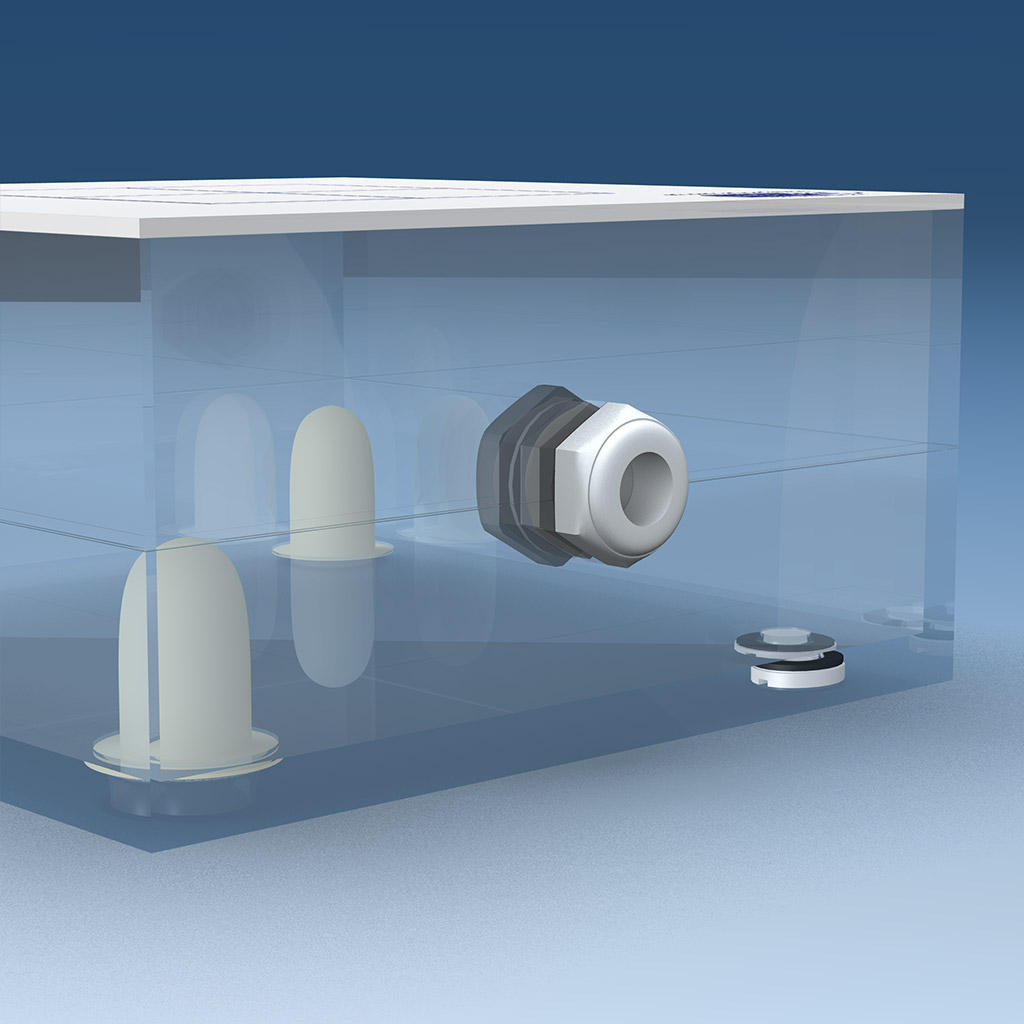

Stationary water phantom for high energy photon dosimetry with all types of ionization chambers.

Technical data (can be modified to customer specifications):

• dimensions: 200 x 200 x 110 mm
• cover made of PMMA
• solid construction ensures durability and no leaks
• entrance wall made of milky / opaque 3mm thick PMMA
• fixed measuring depth at 50mm
• positioning markers on the top and side surfaces
• phantom can be filled with water through a seal plug - a funnel is provided to facilitate the process
• two elastic extension vessels compensate changes of the water volume caused by ambient temperature changes
• well fitted holders are available for different chamber types
• chamber holders can be interchanged (option)
• heavy duty carrying case

Product highlights:

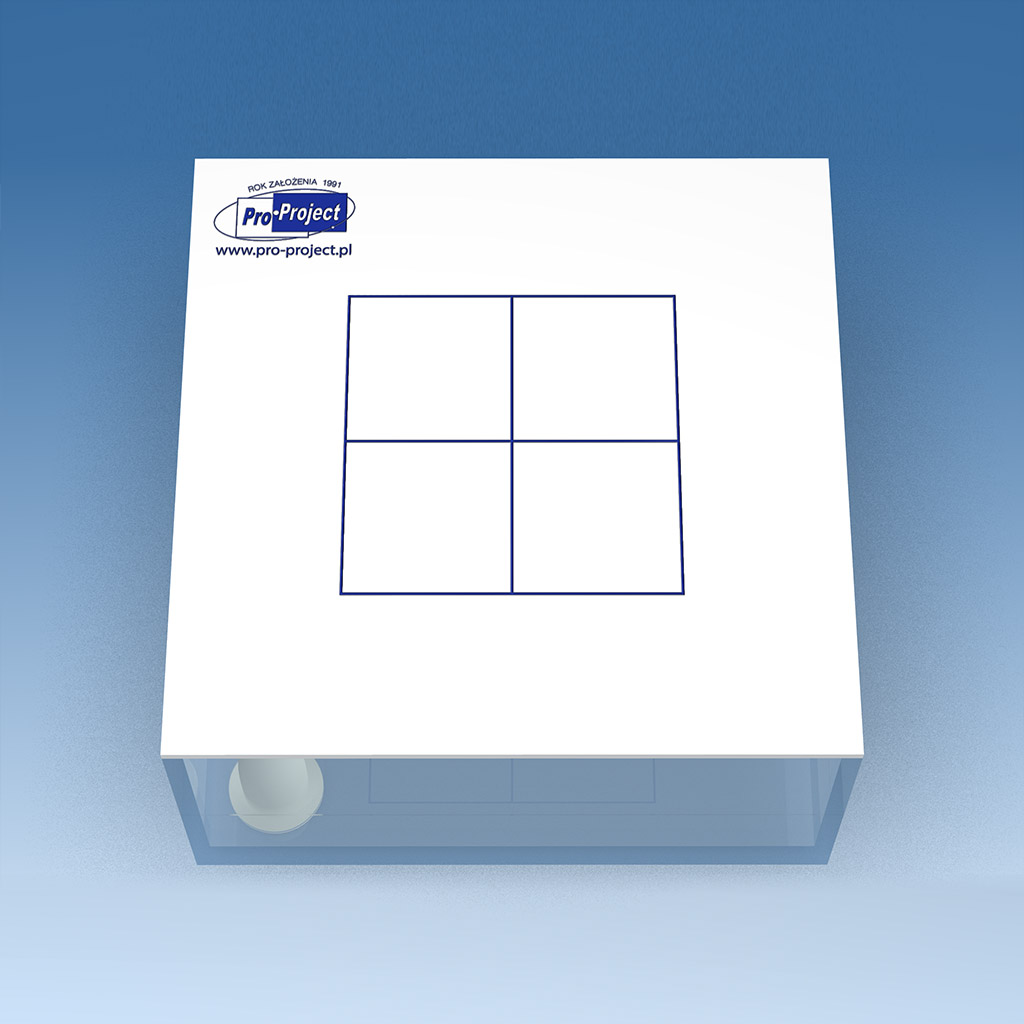

• opaque / white entrance wall with crosshair, makes it very easy to accurately position the phantom in the beam
• side markers at the measurement depth provide further assistance during positioning
• interchangeable holders for different ionization chambers
• extremely well fitted holders are very thin at the reference point – 1mm thick PMMA
• water-proof ion chamber holders are also available

Product features:

• complies with:
  – IAEA Technical Reports Series No. 398
  – IAEA Technical Reports Series No. 430
  – IAEA Specification and Acceptance Testing of Radiotherapy Treatment Planning Systems (IAEA-TECDOC-1540)
• CE certified
• the Manual provides detailed guidelines for carrying out each test, results assessment and registration
