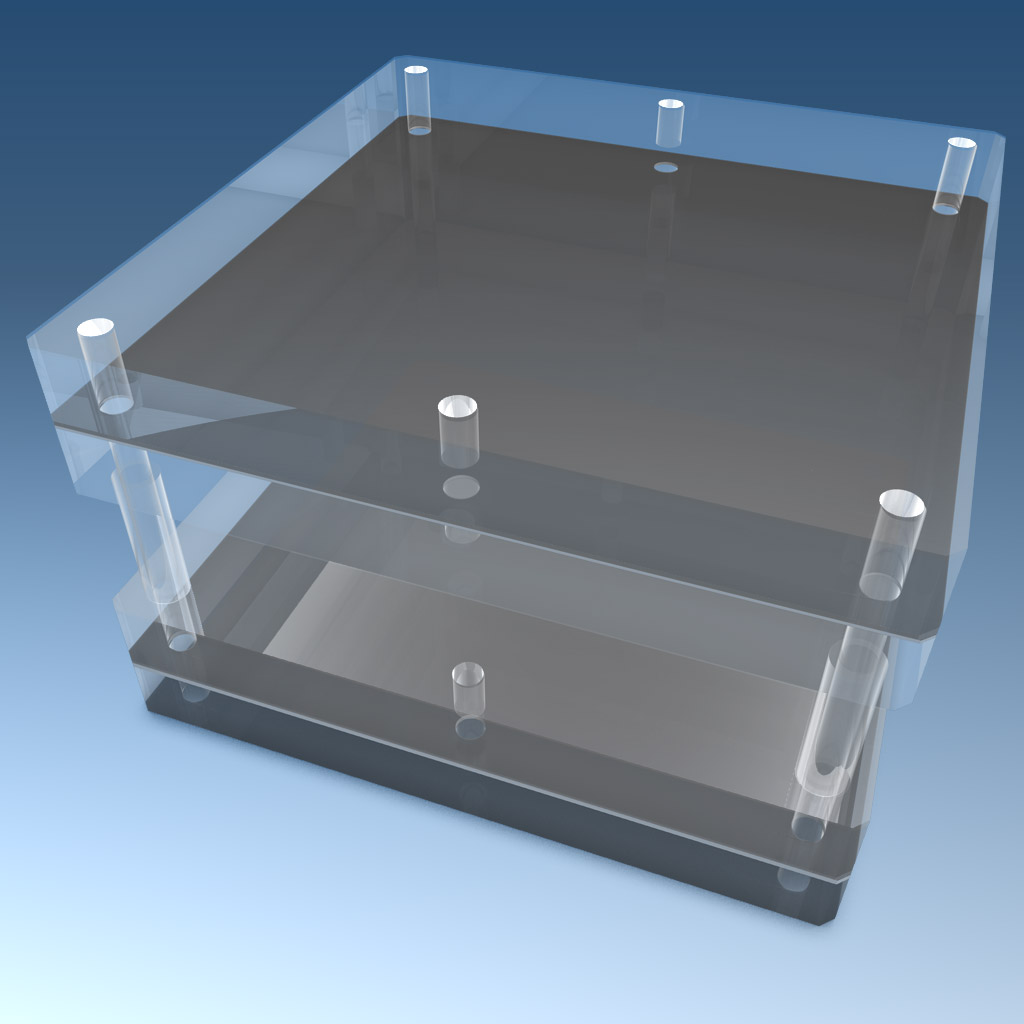

Set of acrylic and aluminium filters for testing diagnostic X-rays according to AAPM recommendations from Report No. 31 ”Standardized Methods for Measuring Diagnostic X-Ray Exposure”. Patient-equivalent acrylic and aluminium phantoms provide the necessary attenuation between the source and AEC or ABC detectors.

Technical data (can be modified to customer specifications):

• 5x acrylic plate 250 x 250 x 25.4mm
• 1x acrylic plate 250 x 250 x 50.8mm
• 1x 250 x 250 x 1mm aluminium filter
• 1x 250 x 250 x 2mm aluminium filter
• 1x 70 x 250 x 4.5mm aluminium filter
• 4x positioning rod
• 4x 50.8mm spacer tube
• optional heavy-duty transport case

Product features:

• complies with:
  – report No. 31 ”Standardized Methods for Measuring Diagnostic X-Ray Exposure”
• CE certified
• the Manual provides detailed guidelines for carrying out each test, results assessment and registration
